30-40mm
PVC trims
HPL, PVC, Ceramic, Marble, and others
18-24kg/pcs
calcium sulphate fiber
600*600mm
Floor Finish Height(FFH): 50mm-2000mm

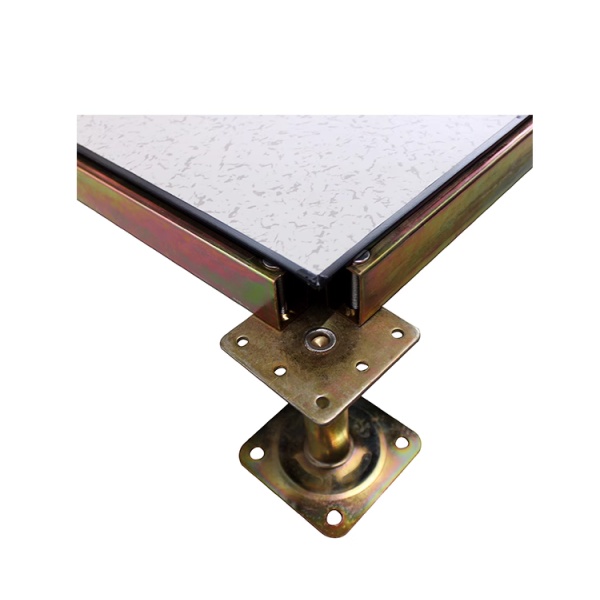

Material: Steel
Coating：zinc/hot-dip galvanizing
Color: Gray, White, yellow
Install: Stringer systems
Technical Parameters
Type | Specification | Concentrated Load | Safety Factor | Impact Load | Ultimate Load | Uniform Load | Rolling load | Standard | |
International | mm | N | (min.2.0) | N | N | (N/M⊃2;） | 10times | 10000times | |
FS1000 | 600*600*35mm | ≥4450 | Pass | 670 | ≥13350 | 23000 | 4450 | 3560 | ClSCA |
FS1250 | 600*600*40mm | ≥5563 | Pass | 670 | ≥16680 | 33000 | 5560 | 4450 | ClSCA |
FS1500 | 600*600*40mm | ≥6675 | Pass | 780 | ≥20025 | 43000 | 6675 | 5560 | ClSCA |

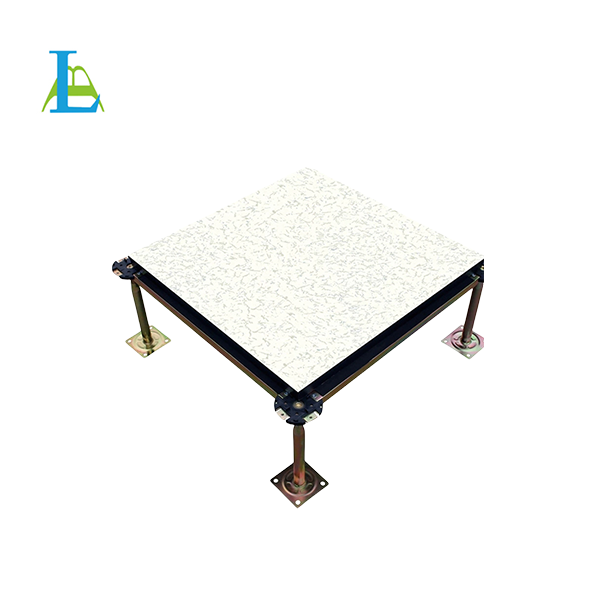

What is Anti-static Calcium Sulfate Raised Access Floor?
An Anti-static Calcium Sulfate Raised Access Floor is a specialized flooring system designed to prevent the buildup of static electricity, making it ideal for environments with sensitive electronic equipment such as data centers, IT rooms, electronics labs, and server racks, where electrostatic discharge (ESD) can cause equipment damage. Made from eco-friendly calcium sulfate, this flooring system offers exceptional fire resistance, soundproofing, and load-bearing capacity, ensuring a stable and safe workspace.

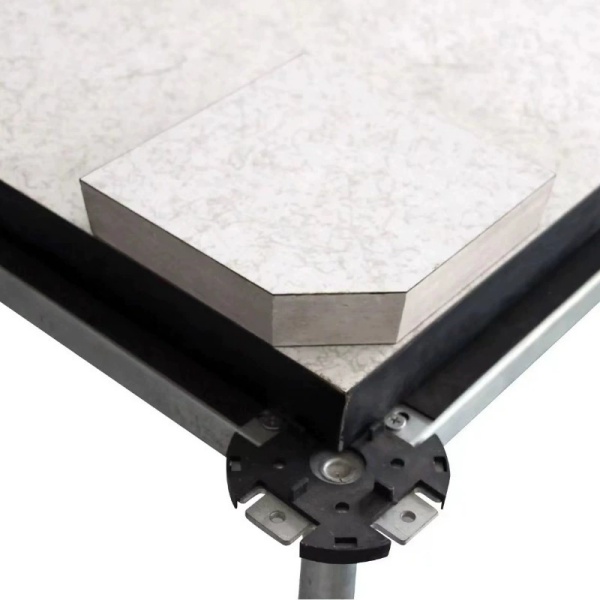

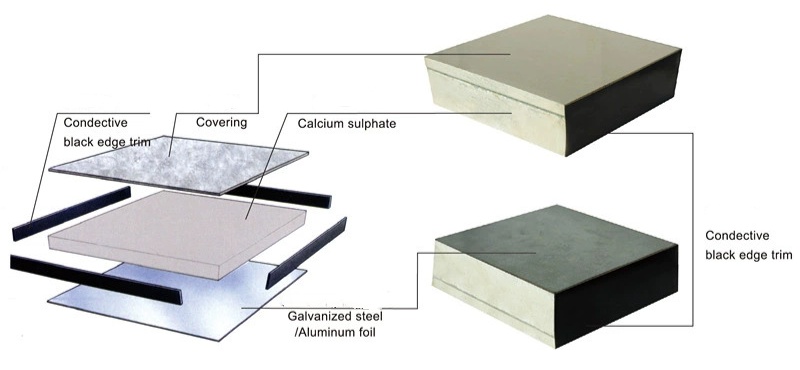

Calcium Sulfate Panels: The flooring is constructed using calcium sulfate, a strong, non-combustible material known for its high durability, thermal insulation, and soundproofing properties. It is ideal for spaces that require high-durability flooring to support heavy equipment, making it suitable for data centers, manufacturing plants, and laboratories.
Anti-static Properties: The floor’s anti-static capabilities effectively dissipate electrostatic discharge (ESD), safeguarding electronics and telecommunications systems. This is crucial in facilities like server rooms, cloud computing raised floors, and semiconductor fabs where even a small static shock can result in costly damage to sensitive machinery.

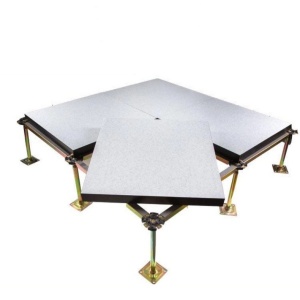

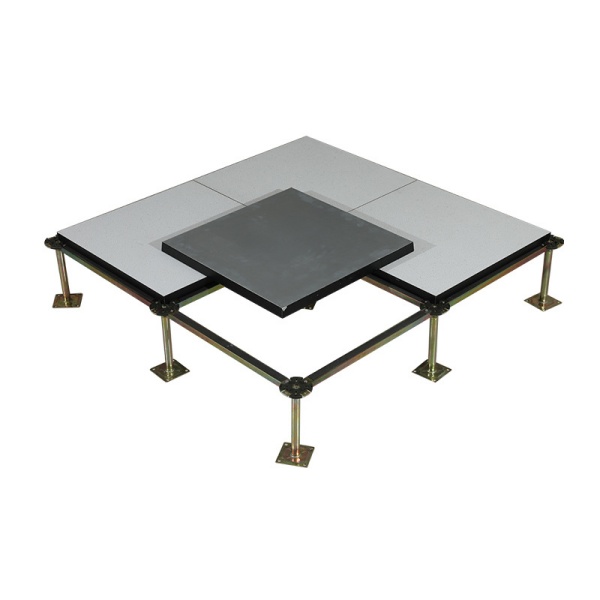

Modular Design: The modular raised floor system consists of individual panels, making installation, removal, and reconfiguration simple. This adjustable floor system allows for cable management, HVAC systems, and easy access to underfloor utilities. It is particularly beneficial in high-traffic, high-demand environments like data centers and telecommunications hubs.
Access and Utility Management: The raised floor design provides convenient access to the space below, allowing for efficient organization and routing of cables, electrical lines, and HVAC systems. This makes it an essential feature for high-density server flooring and IT room cable management flooring.
Durability and Load-Bearing Capacity: With its combination of calcium sulfate and steel construction, this flooring system is built to support heavy loads. It is perfect for heavy-duty industrial floors, factories, and cleanroom production floors, where equipment and infrastructure require robust support.
Fire Resistance: The non-combustible nature of calcium sulfate significantly enhances the fire resistance of the flooring system, making it a safer option for high-risk environments like data vaults, server rooms, and chemical plants.
Thermal and Acoustic Insulation: In addition to its structural benefits, the calcium sulfate panels provide thermal insulation and soundproofing features, maintaining a stable environment for sensitive equipment and reducing noise levels in environments like auditoriums, research labs, and commercial spaces.
Protection for Electronics: The floor’s anti-static properties protect valuable equipment from electrostatic discharge (ESD), ensuring the safe operation of electronics in environments like data centers, server racks, and electronics labs.
Sustainable and Eco-friendly: Made from eco-certified materials, this flooring system is an environmentally friendly choice for those looking to integrate sustainable practices into their building design. It contributes to LEED compliant access floors and energy-efficient raised floors.
Infrastructure Flexibility: The modular design ensures that the floor can easily adapt to changing utility and equipment requirements. It offers easy cable management, and the removable floor panels make maintenance and upgrades straightforward, particularly in dynamic environments like IT rooms and data centers.
Enhanced Safety: With its fire-resistant, impact-resistant, and anti-static properties, this flooring system is a safe and reliable choice for environments that require stringent safety standards, such as hospital clean room flooring, laboratories, and data vaults.
Long-Term Durability: The high-durability flooring ensures that the system lasts for years, reducing the need for frequent replacements. The recycled material access floor options and long lifespan make it a cost-effective solution for high-traffic industrial floors and server rooms.
Data Centers
Why it’s crucial for data centers
Reducing risk of damage to sensitive equipment
Telecommunication Rooms
Flooring for telecom infrastructure
Ensuring equipment safety
Offices and Commercial Spaces
Aesthetic and functional applications
Providing flexibility for cable management

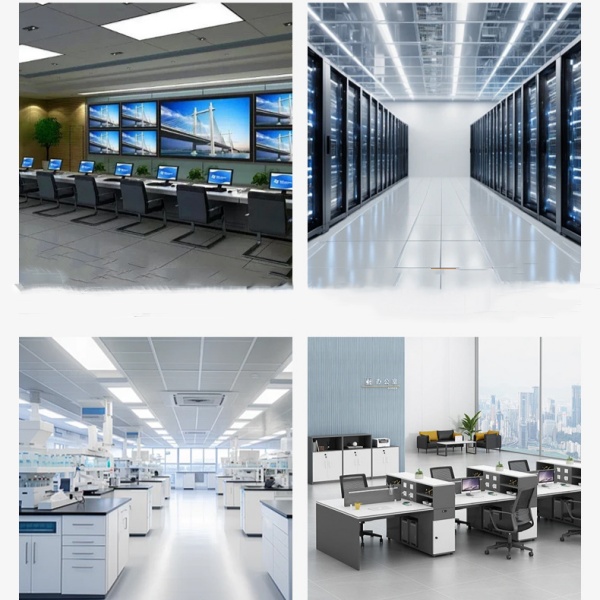

Monitoring room, Computer room, Laboratory, Office raised Floor
Data Centers Raised Floor
Kanzhun Limited
Deli Group Hangzhou Head quarters Office Building
Guangzhou Trendy Building Replacement Project

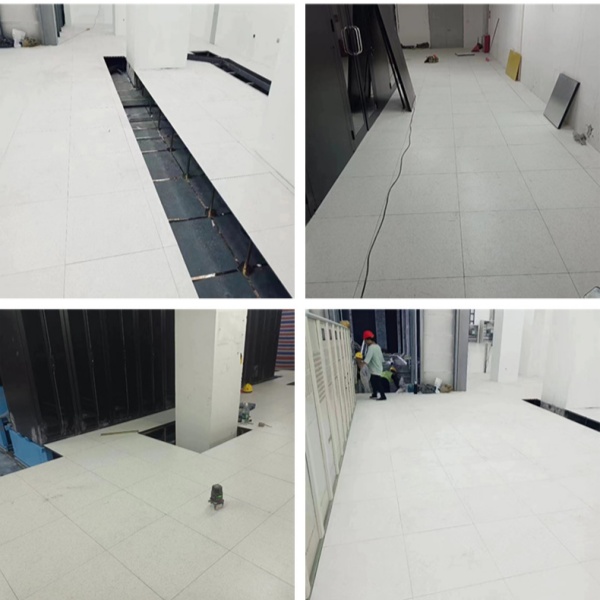

Clean the floor
Set up the infrared horizontal scanner
Pull a horizontal vertical line
Install the first floor as the floor level
Install other floors along the horizontal vertical line
Install all floors, then adjust the height, do the clean
