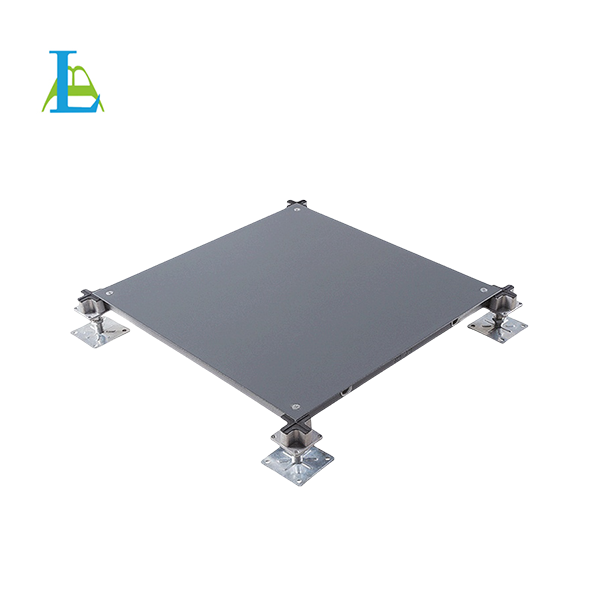

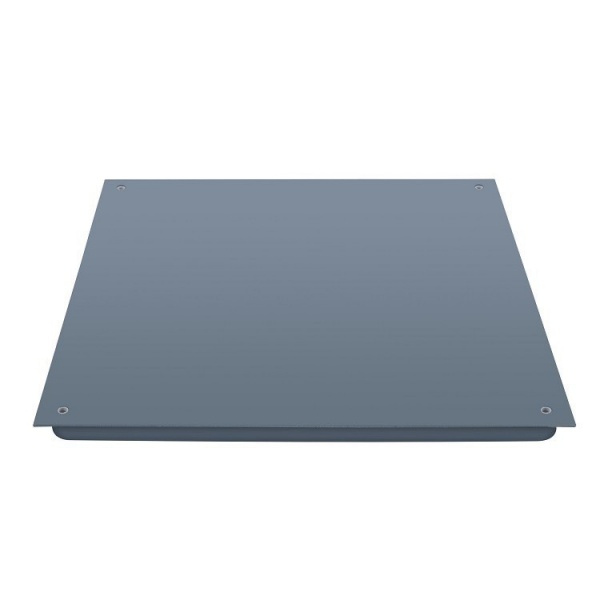

OA Steel Cementitious Raised Floor

OA 500*500*28mm OA 600*600*35mm

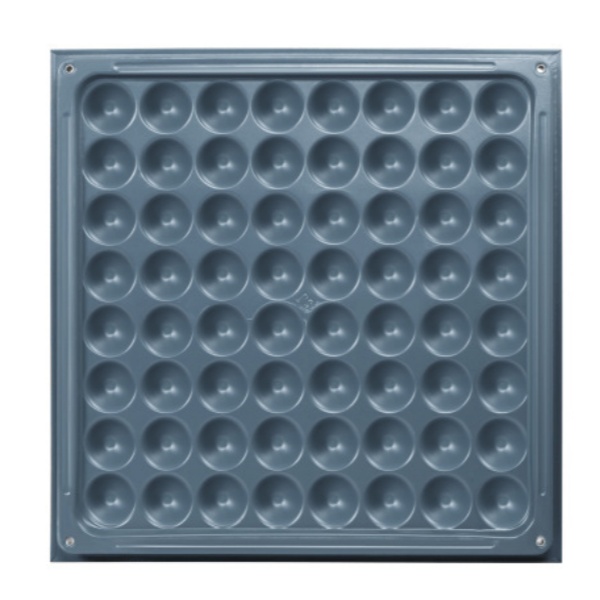

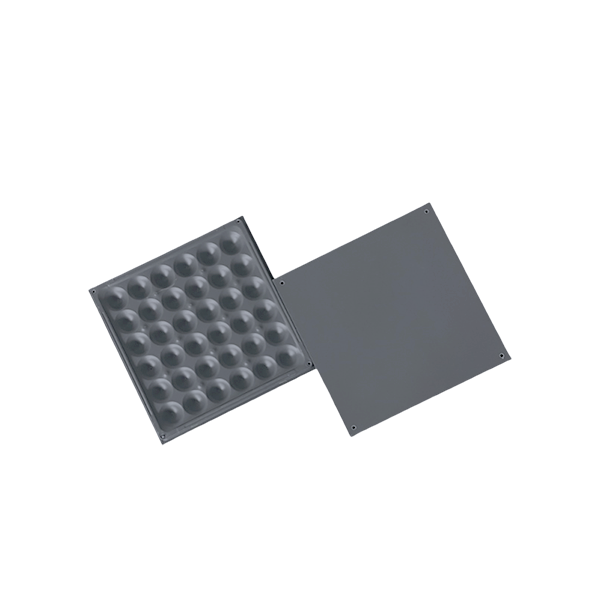

OA steel cementitious raised floor panels are made of high-quality steel, with a one-piece shell construction and an epoxy-coated surface. They are the most traditional raised floor. These panels feature a flat steel top plate welded to a formed steel bottom plate. OA panels undergo rigorous testing by CISCA (Ceiling and Interior Systems Building Association) to ensure they meet the industry's highest safety, performance and quality benchmarks. Whether used in office buildings, data centers or industrial facilities, these panels provide a reliable and long-lasting solution for raised floor systems. Bulu is the one of the biggest of access flooring company in china.

Surface:
Bare finish
Weight :
14-16kg/pcs
Material:
steel, cement, powder
Size:
500*500*28mm, 600*600*35mm or custom


Availability:



Inquire

Product Description

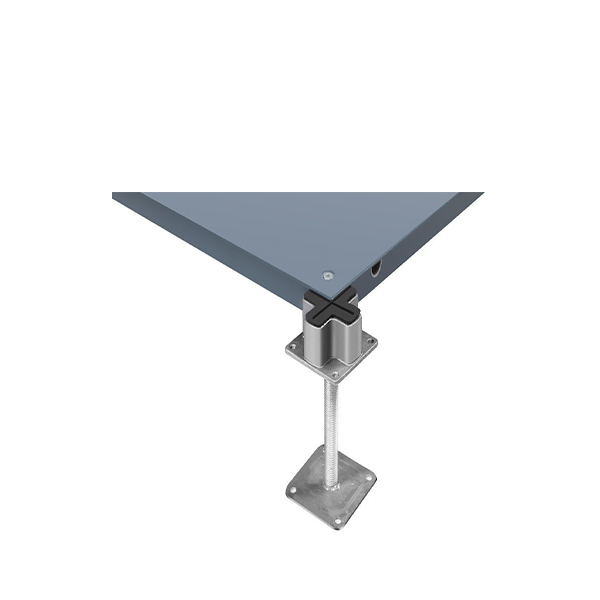

Understructure Details

Floor Finish Height(FFH): 50mm-2000mm

Material: Steel

Coating：zinc/hot-dip galvanizing

Color: Gray, White, yellow

Technical Parameters

Type	Specification	Concentrated Load	Safety Factor	Impact Load	Ultimate Load	Uniform Load	Rolling load		Standard
International	mm	N	(min.2.0)	N	N	(N/M⊃2;）	10times	10000times	Standard
FS700	50050028mm	≥2950	Pass	550	≥8850	12500	2950	2255	ClSCA
FS800	50050028mm	≥3550	Pass	670	≥10680	16100	3560	2950	ClSCA
FS1000	50050028mm	≥4450	Pass	670	≥13350	23000	4450	3560	ClSCA

Type	Specification	Concentrated Load	Safety Factor	Impact Load	Ultimate Load	Uniform Load	Rolling load		Standard
International	mm	N	(min.2.0)	N	N	(N/M⊃2;）	10times	10000times	Standard
FS700	60060035mm	≥2950	Pass	550	≥8850	12500	2950	2255	ClSCA
FS800	60060035mm	≥3550	Pass	670	≥10680	16100	3560	2950	ClSCA
FS1000	60060035mm	≥4450	Pass	670	≥13350	23000	4450	3560	ClSCA
FS1250	60060035mm	≥5560	Pass	670	≥16680	33000	5560	4450	ClSCA

What is OA Steel Cementitious Raised Floor?

The OA Steel Cementitious Raised Floor is a type of raised access flooring system that combines a steel structure with a cementitious core to create a highly durable and stable flooring solution. This system is designed for environments that require both strength and accessibility, making it ideal for use in data centers, commercial buildings, industrial facilities, and office spaces.

Here are the key components and features:

Steel Construction: The top and bottom parts of the panels are typically made of steel, providing strength, stability, and resistance to wear and corrosion. Steel gives the panels structural integrity, ensuring they can support heavy loads and withstand high-traffic areas or environments with heavy equipment.

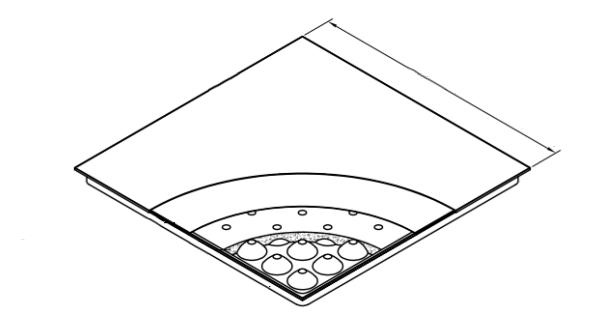

Cementitious Core: The core of the panel is made of a cementitious material, which adds additional strength, enhances the stability of the floor system, and provides soundproofing properties. This cementitious core helps to reduce noise levels, ensuring a quieter environment, and contributes to the overall durability of the raised floor system.

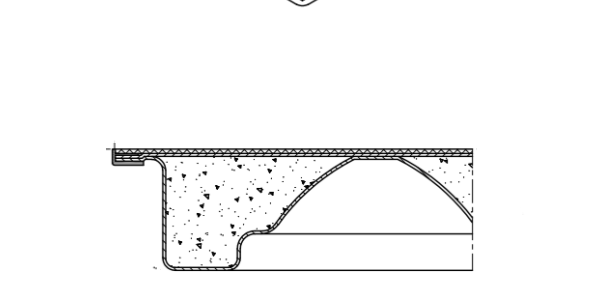

Structure

OA Steel Cementitious Raised Floor Advantages

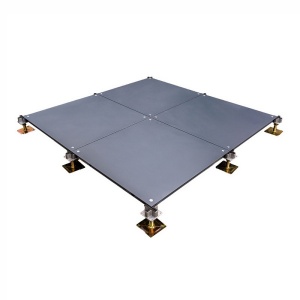

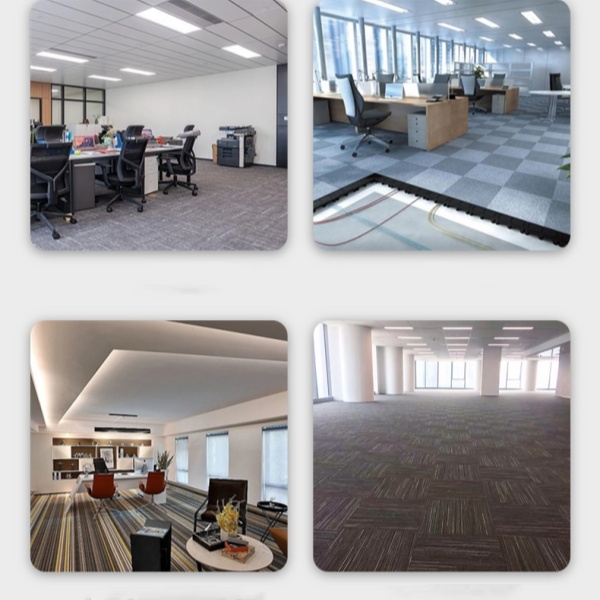

Modular Panels: The OA Steel Cementitious Raised Floor is designed with modular panels, allowing for easy installation, removal, and maintenance. This modularity provides flexibility, making it easier to add or reconfigure utilities such as electrical wiring, data cables, or HVAC systems as needed.
Access and Utility Management: One of the main benefits of this flooring system is the accessible void beneath. The space under the raised floor allows for efficient management and organization of cables, wires, and other utilities, keeping the floor area tidy and ensuring easy access for maintenance and upgrades.
Durability and Load-Bearing: The combination of steel and cementitious materials creates a highly durable and load-bearing flooring system. It is well-suited for spaces that require significant weight support, such as data centers, industrial environments, and offices.
Fire Resistance: The cementitious core enhances the fire resistance of the floor system, providing added safety in environments where fire hazards are a concern. This is particularly important in data centers, server rooms, and other facilities that house sensitive and critical equipment.
Thermal and Acoustic Insulation: The cementitious material offers thermal insulation and soundproofing benefits. This helps to regulate the temperature in the room, making it ideal for sensitive equipment that requires consistent temperatures, while also reducing noise levels in office and commercial environments.
